FlySky FS-i6 2.4G 6CH PPM RC Transmitter with FS-iA6B Receiver

Description

FlySky FS-i6 6CH 2.4G PPM RC Transmitter with FS-iA6B Receiver

Overview:

1. The newest 6 channel 2.4GHz system with lots of cool and convenient features making the operation of this transmitter simple and instinctive.
2. The FlySky FS-i6 is the perfect transmitter for sports modellers who want the power of a programmable transmitter but don’t necessarily need a lot of excess features they do not use.
3. It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and aeroplanes.
4. It has the ability to store 20 models allowing the user to save a whole fleet of aircraft.


Features :

• Entry-level 6 channel 2.4GHz radio with telemetry capability.
• Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches.
• Easy to use Programming & Navigation Buttons.
• Supports Heli/Standard Wing/Elevon/V-Tail.
• 20 Model Memory.
• 8 Character Model Name.
• Trainer and charging ports.
• The backlight LCD screen displays real-time transmitter and receiver voltage.
• 4 Stick Mode Selectable.
• Mode 2.
• It comes with a receiver.

Specifications of Transmitter :

• Model Type: Glider/Heli/Airplane
• Band: 142
• 2.4ghz System: AFHDS 2A and AFHDS
• Code Type: GFSK
• DSC Port: PS2;
• Output: PPM
• Charger Port: No
• ANT length: 26mm*2(dual antenna)
• Online update: Yes
• Certificate: CE0678,FCC
• Model Memories: 20
• Channel Order: Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4, Ch 5 & 6 open to assignment to other functions.

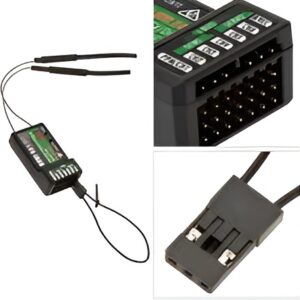

FS-iA6B Receiver Specifications :

• Channel: 6.
• Frequency Range: 2.4055–2.475 GHz.
• Band Width Number: 140
• Transmitting Power: ≤ 20 dBm.
• RF Receiver Sensitivity: 105 dBm.
• 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system.
• Encoding: GFSK.
• Antenna Length : 2 x 26 mm (dual antenna).
• Input Power : 4.0 – 8.4 VDC (2A).
• Dimension : 47 x 26.2 x 15 mm
• Weight: 14.9 gm.
• Data Acquisition Interface: Yes.
• Model Type : Airplane / Glider / Helicopter.
• Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G.
